Commercial Sewage Treatment

Biocell Commercial Concrete+

5 out of 5 based on 7 customer ratings
(7 customer reviews)

Reinforced concrete tanks. Simple installation. 50-500 person systems. Certified to EN12566-3. Low energy costs. Any effluent quality can be achieved.  Trade prices and instant quotes. Call now to speak to the experts.

Product Description

The ideal off mains drainage solution for every commercial or large scale application. A full range of large commercial sewage treatment plants up to 500 persons. Above or below ground installation. Systems in precast concrete tanks for lifetime structural warranty. Significant installation cost savings when compared to large plastic tanks. Reliable a robust systems with ultra low running costs. Systems designed to suit your project. Instant quotes. Fast delivery times. Certified to EN12566-3 and adoptable by Local Authorities.

MBBR and SBR treatment technologies available. Off the shelf systems, or bespoke system designs available for your project. Systems suitable for a range of developments including, but not limited to:

  • Hotels
  • Guest houses
  • Restaurants
  • Mixed use developments
  • Schools
  • Caravan parks
  • Industrial units
  • Motorway service stations
  • Housing developments
  • Sports clubs

Systems can be designed to achieve any effluent quality. Optional extras include, but are not limited to:

  • UV disinfection
  • Chemical dosing for P reduction
  • Denitrification
  • GSM dialout alarms
  • Extra large sludge storage chambers

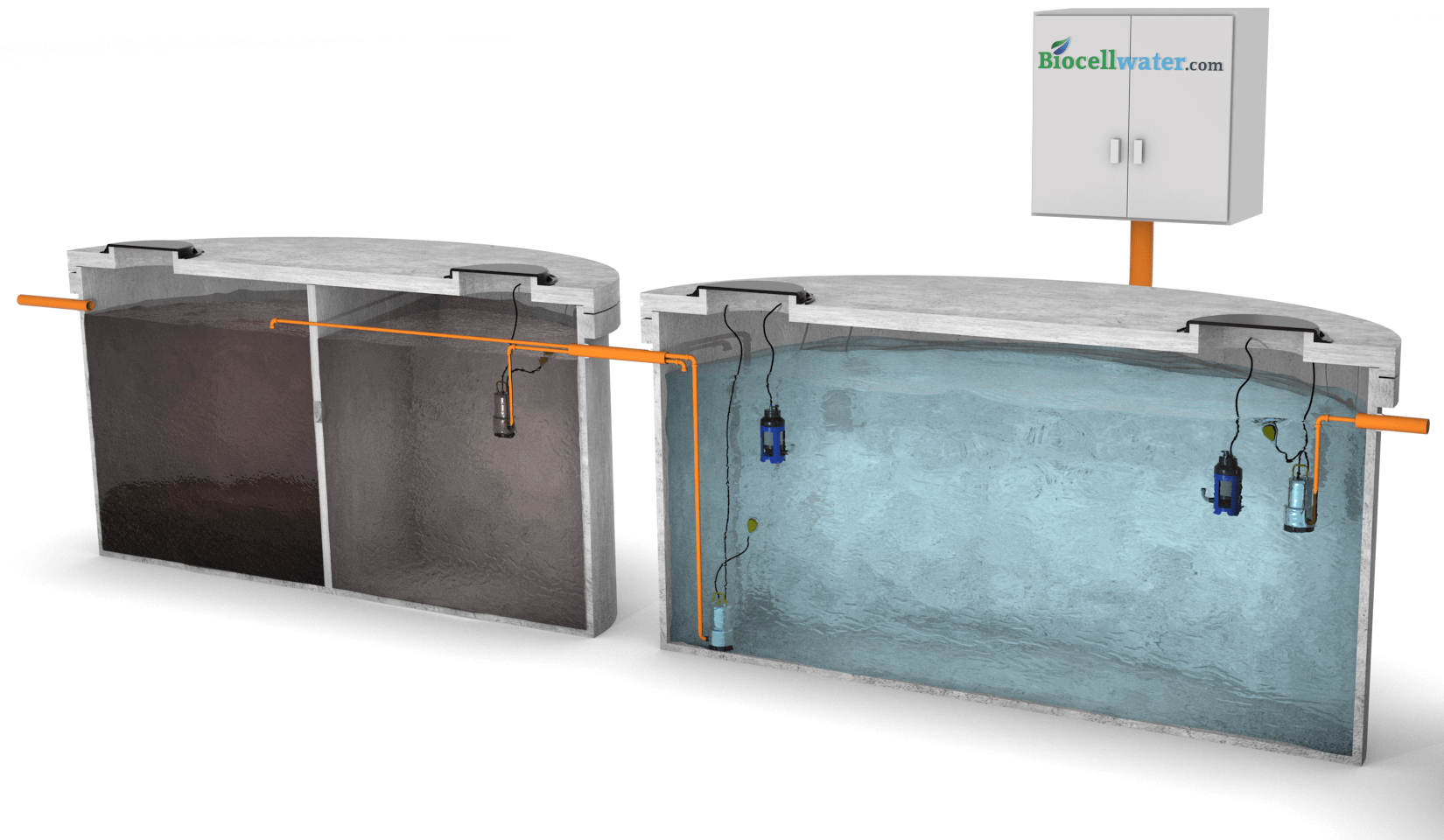

1-3-concrete-tank

Owner: Why buy a Biocell commercial system

  • Longest tank warranty on the market
  • Longest desludging intervals – up to 5 years
  • Unrivaled experience
  • Low running costs
  • No odour
  • Whisper quiet operation
  • Total peace of mind – from one of the most reliable, tried and tested systems on the market
  • Nationwide customer support and service teams

Installer/Builder: Why buy a Biocell commercial plant

  • Trade discounts
  • Simple to install – no concrete base or concrete surround
  • We supply the crane
  • Flat base for simple installation – not curved or cone shaped tanks that are difficult to backfill
  • Single day installation
  • Short lead in times
  • Totally trouble free so your customers will always be satisfied

A Treatment Process Specific To You Application!

There are a variety of treatment processes available, and the choice of process should depend on the application type. For example, a school wastewater treatment plant is only in use during school hours, and there may be no sewage entering the plant over weekends or on holidays. In contrast, a busy restaurant may have wastewater entering the system 7 days a week 18 hours a day, and the wastewater may be much more concentrated and higher strength than school wastewater. Below is an explanation of the two main forms of sewage treatment we employ.

SBR [Sequential Batch Reactor]

The Sequencing Batch Reactor (SBR) is an activated sludge process designed to operate under non-steady state conditions. An SBR operates in a true batch mode with aeration and sludge settlement both occurring in the same chamber. The major differences between SBR and conventional continuous-flow, activated sludge system is that the SBR tank carries out the functions of equalisation, aeration and settlement in a time sequence rather than in the conventional sequence of continuous-flow systems. In addition, the SBR system can be designed with the ability to treat a wide range of wastewater volumes, whereas the continuous system is based upon a fixed flowrate.

The SBR system does not run constantly. If there is no sewage entering the sewage treatment plant the SBR process can detect this and enter ‘eco mode’. So for periods of non use, the system does nto keep constantly aerating and treating the sewage. The controlled nature of the SBR makes it ideal for an application with variable flows and where there are periods of non use.

Typical examples where an SBR is the best choice include the following: Schools wastewater treatment, creche wastewater treatment, caravan park wastewater treatment.

Advantages of the SBR process are as follows;

  • High degree of operational flexibility
  • No separate clarifiers
  • Low capital cost
  • Low power consumption
  • Very high effluent quality due to the controlled process

Commercial SBR

MBBR [Moving Bed Biological Reactor]

The MBBR is a recently developed form of sewage treatment. MBBR processes improve reliability, offer simple operation, and require less volume than traditional wastewater treatment systems. MBBR technology employs thousands of balls of plastic media operating in mixed motion within an aeration chamber. Each individual biocarrier increases productivity by providing a very high surface area for the growth of heterotrophic and autotrophic bacteria. It is this high-density population of bacteria that achieves high-rate biodegradation within the system, while also offering process reliability and ease of operation.

This technology provides cost-effective treatment with minimal maintenance, since MBBR processes self-maintain an optimum level of productive biofilm. Additionally, the biofilm attached to the mobile biocarriers within the system automatically responds to load fluctuations. The MBBR has the following main benefits;

  • Compact design
  • Simple to expand by just adding more media to a tank
  • Single pass process with no need for transfer pumps or siphons
  • Low maintenance
  • Can deal with highly variable loads

mbbr

Additional Information

Tank Material

Reinforced precast concrete tanks

Plant Sizes

Up to 500 persons

Treatment Standard

Any treatment level available

Certification

EN12566-3

Manhole sizes

600 x 600 Cast Iron B125 or D400 options available.

Inlet Pipe Size

Manufactured to suit site conditions

Outlet Pipe SIze

Manufactured to suit site conditions

Power Supply

220v or 400v depending on site supply and plant size
