Sewage Treatment Plant Products

ClearFox Nature [non-electric]

Rated 4.94 out of 5 based on 17 customer ratings
(17 customer reviews)

  • High effluent quality for direct discharges
  • Sustainable home sewage treatment
  • Zero energy consumption
  • Odour free
  • Noise free (no mechanical parts)
  • Suitable for new builds or septic tank upgrades
  • Shallow dig tank with no concrete backfill
  • EN12566-7 and  EN12566-3 certified
  • British Water approved
  • Rapid 2-Day Nationwide Delivery
  • Contact us for information, advice or a free quotation

Description


ClearFox Nature Non Electric Home Sewage Treatment System

The Clearfox nature non-electric sewage system

The ClearFox Nature by Biocell Water is an innovative non electric domestic sewage treatment plant that uses zero electricity to treat wastewater. It is the only sustainable domestic sewage system on the market that will never require replacement parts or media throughout its lifetime. The modular (expandable) design of the ClearFox Nature means that it is suitable for both small scale sewage treatment applications and large scale wastewater treatment applications.

This eco friendly treatment system is both EN12566-3 certified and British Water approved.  For new builds, a complete ClearFox sewage system with a primary tank is the ideal low cost wastewater treatment solution for the environmentally conscious. Alternatively, we can install the ClearFox Nature treatment tank as an upgrade to an existing septic tank if necessary. It features a gravity outlet and is suitable for installation in all soil conditions.


Sustainable Wastewater Treatment for Homeowners and Builders

For homeowners, the yearly savings are significant with no electricity costs, no media or parts and no specialist maintenance requirements. This odour free home sewage system is so effective and reliable that it cannot breakdown or fail. Plus, it is the quietest domestic wastewater treatment plant on the market.

Among the many good reasons an installer or a builder would choose a ClearFox Nature non electric domestic wastewater treatment system is our trade discount. The installation process is quick and easy without any need to connect the tank to a power supply. It’s also a shallow dig tank which is suitable for installation in all soil conditions. Not only that, it’s a single piece watertight tank made with reinforced with HDPE that does not require any concrete backfill. The low purchase price and trouble free set up is ideal for budgeting a new build.

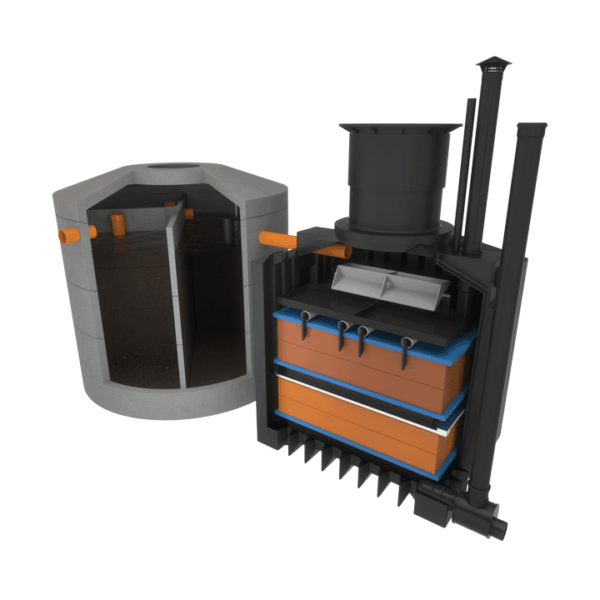

Upgrading a Septic Tank to Zero Energy Wastewater Treatment

The ClearFox Nature is a perfect solution for upgrading an existing septic tank. This is because we install the bioreactor tank after an existing septic tank. It’s quick and easy to install, without the need to bring a power supply to the tank location. We simply connect the outlet of the existing septic tank into the ClearFox Nature reactor tank, and we then connect the outlet of the ClearFox Nature to an existing soakaway or stream/watercourse – easy! Furthermore, by adding the bioreactor tank after your septic tank you have a system that is totally compliant with EN12566-7 – the EPA standard for domestic sewage treatment systems.

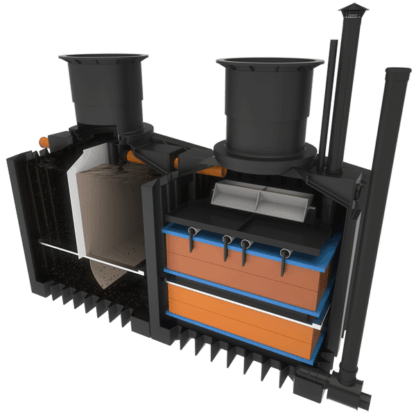

Clearfox Nature Zero Electricity Treatment Process

Primary Treatment

Firstly, raw sewage enters the first tank which is the primary chamber. Here, any large solids settle out of the wastewater. These solids settle into the bottom of the primary tank to form settled sludge. This sludge then settles and compacts, allowing for long desludging intervals.

Following that, any fats, oils, grease or scum floats on the top of the water column in the primary chamber. This material forms a scum layer. The primary tank is an anoxic, passive treatment step. As all floating material and all solids remain in the primary chamber, the wastewater that flows forward is cleaned in this primary treatment stage.

The Bioreactor

Once primary treatment is complete, the primary cleaned wastewater flows by gravity into the reactor chamber. A tipping plate spreads the effluent evenly over the entire media surface. The plastic media in the bioreactor has a very high surface area. This surface area is colonised by naturally occurring bacteria. These bacteria feed on the nutrients and organic material in the incoming wastewater, cleaning it to a very high standard.

Aeration

Most electric systems use small electrical air compressors to aerate the wastewater and to provide the bacteria that complete the cleaning with oxygen. However, the Clearfox Nature uses natural ventilation via a small 1m high vent stack to draw fresh air into the tank. This means the system does not need any electricity. So you have a process driven by naturally occurring bacteria, using natural ventilation for the aeration process. This makes the Clearfox Nature a totally sustainable method of wastewater treatment. Saving you money on operational costs every day.


How to Buy A ClearFox Nature Non Electric Home Sewage System

If you would like to upgrade your septic tank and produce cleaner, better quality effluent then the Clearfox Nature is an ideal solution. Once we know about your project and site requirements we can give an instant quotation. We are always on hand to answer any of your questions about non electric wastewater treatment and give free expert advice.

For additional peace of mind, we provide a nationwide customer support service and for long term care we offer value for money maintenance packages to keep your new home sewage treatment system in top working order.

Our experienced technical sales team are here to help guide you through the process and ask the necessary questions. Simply get in touch using the contact form or give us a call. We are happy to provide you with a free quotation or to provide extra information about any of our wastewater treatment plants and products. We look forward to hearing from you.




Additional information

Capacity

4 to 48 person models. Modular system for larger developments.

Outlet Type

Gravity

Inlet Pipe Size

110mm / 4"

Outlet Pipe Size

110mm / 4"
Note: outlet at base of treatment tank

Manhole Extensions Available

Yes

Manhole size

Ø 680mm

Tank Material

Reinforced HDPE

Electrical Supply

None required

Electrical Consumption

None

Certification

EN12566-3, DIBT, British Water Approved

CE Marked

Yes

Suitable For Below Ground Installation

Yes. Also suitable for above ground installation.

Suitable for Upgrades

Yes – simply place biomodule tank after existing septic tank

Suitable for New Builds

Yes – and can be installed in place of any other system
